Five Decades of
Precision Compounding
Each era's tools cut faster, lasted longer, and held tighter tolerances than the last. The price difference between 1975 HSS and today's nano-composite is the story of exactly how much precision costs to engineer.
High-Speed Steel — The Foundation
Standard End Mill
High-Speed Steel M2 (W6Mo5Cr4V2)
Ground from bar stock. Regrindable up to 6× with proper setup. The standard for job shops through 1988.
Cobalt End Mill
Cobalt High-Speed Steel T15 (5% Co)
Cobalt addition raises hot hardness to 65 HRC. Preferred for 304/316 stainless before carbide pricing dropped.
CVD-Coated Carbide — The Leap
CVD-Coated Carbide
WC-Co 6% + TiN CVD (Chemical Vapor Deposition)
CVD TiN pushed tool life 3× over HSS. The coating process ran at 1,000°C — thermal mismatch limited edge sharpness.
PVD TiAlN Insert
WC-Co 8% + TiAlN PVD (Physical Vapor Deposition)
PVD at 450°C enabled sharper edges. Al in TiAlN forms Al₂O₃ at temp — self-lubricating oxide barrier above 800°C.
Fine-Grain Carbide
WC submicron 0.8μm grain + Co 10%
Sub-micron WC grain enables TRS of 3,800 MPa. First carbide grade to reliably machine D2 at 60 HRC without catastrophic failure.
Nano-Composite Geometry — Precision Compounded
4-Flute Nano-Composite
WC-Co 10% Binder + TiAlN/AlCrN Nano-Multilayer
Nano-multilayer disrupts crack propagation. 640 individual layers at 3.2nm each. Hardness: 3,800 HV. Oxidation resistance to 1,100°C.
5-Flute Variable Flute HEM
WC-Co 10% + AlTiSiN PVD
Variable flute pitch (36°/37°/38°/36°/37°) eliminates harmonic resonance at 14,000 RPM. Si addition raises hardness to 4,200 HV.
Insert Grade — Turning
WC-Co 6% + CVD Al₂O₃/TiN MT
MT-CVD at 850°C deposits fine-columnar TiCN — 15μm total stack. Al₂O₃ mid-layer acts as thermal barrier at 1,200°C crater zone.
In-Stock. Ground to Spec.
Ships Same Day.

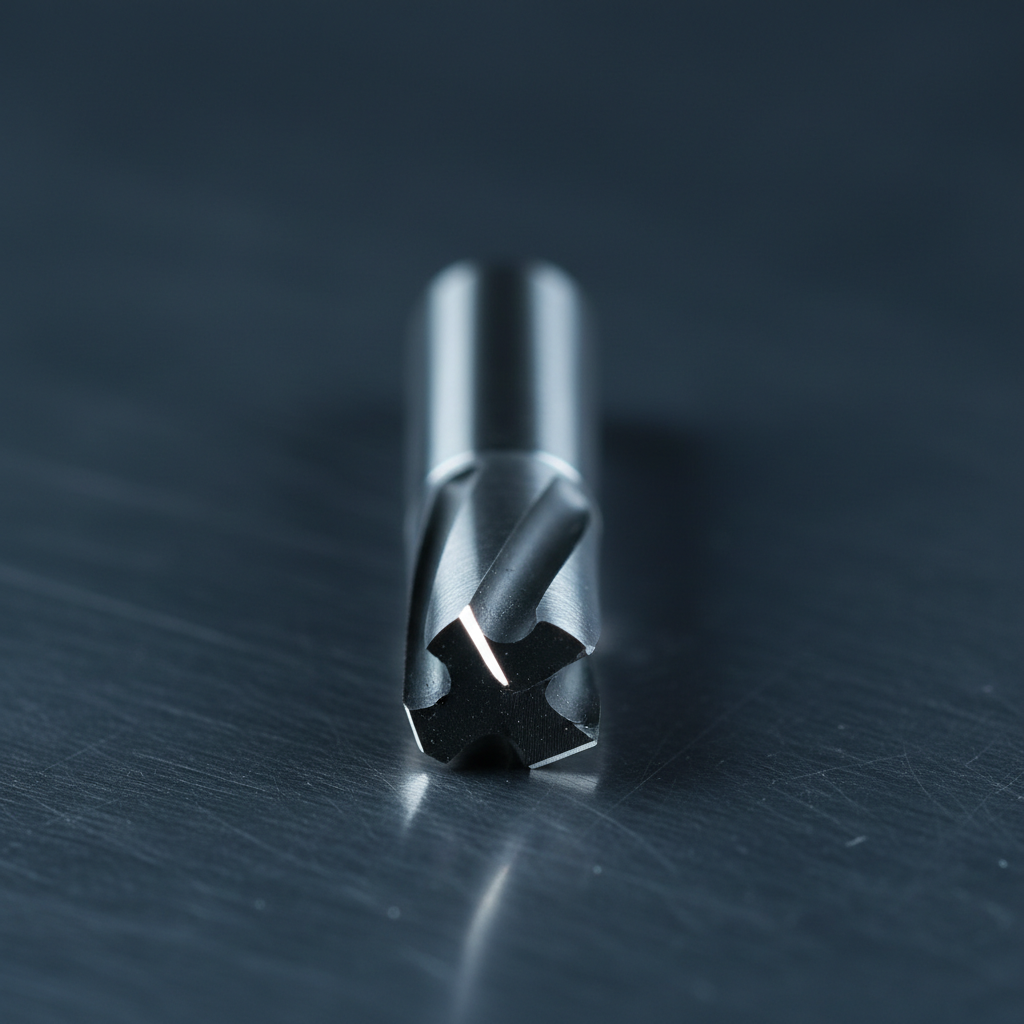

4-Flute End Mill
5-Flute HEM End Mill
3-Flute Drill — Carbide
Turning Insert CNMG
4-Flute Micro End Mill
2-Flute Ball End Mill
Coating Hardness Comparison
HV / °CHow We Grind Them
WC-Co blanks are sourced to ±0.5μm diameter tolerance. Cobalt binder percentage is verified by XRF before grinding begins. Reject rate at intake: 0.3%.
Walter Helitronic 5-axis grinders with CBN wheels. Grinding parameters set per substrate lot — wheel speed, dress interval, and coolant pressure logged to part serial.
Batch-loaded into Oerlikon Balzers arc-PVD chambers. 640-layer TiAlN/AlCrN stack deposited at 450°C, 3.2nm per layer. Cycle time: 18 hours per batch.
Every tool measured on Zeiss CMM: runout ≤0.002mm, diameter ±0.005mm, edge radius 0.004"±0.001". Cert ships with tool. No sampling — 100% inspection.
